Cementing Unit Supplier & Exporter in India
Oil Well Cementing Equipment are essential for the Oil/Gas exploration or production wells and are must used oilfield equipments while drilling a well.
Casing pipe will be installed at various depths while drilling. It is held in place by cement, which also provides zone isolation. Casing is run to protect the wellbore from fluids, pressures and wellbore stability problems. Down-hole equipment such as Centralizers and Turbolizers are used to ensure obtaining satisfactory zone isolation. Float Shoes and Collars (float valves) prevent backflow after the cement has been pumped into place.
Centralizers, Turbolizers and Scratchers
Devices fitted with hinged collars and bow springs help keep the casing or liner in the center of the wellbore to help ensure efficient placement of a cement sheath around the casing string. If casing strings are cemented off-center, there is a high risk that a channel of drilling fluid or contaminated cement will be left where the casing contacts the formation, creating an imperfect seal.
Turbolizers have added fins to "stir" up the drilling fluid and cement to keep the flow turbulent in order to make sure the cement flows all the way around the casing in order to prevent channeling.
Scratchers use metal wires to scrape mud cake off permeable zones to help obtain a solid cement column.
There are four types of centralizers: bow-spring, rigid, semi-rigid, and mold-on. Bow-spring centralizers consist of an ease of passage way through narrow hole sections with expansion in targeted locations. Rigid centralizer are made up of solid steel bars or cast iron, with a fixed blade height that are sized to fit specific casing or hole sizes. Semi-rigid centralizer are composed of double crested bows, providing restoring forces that exceed standards set forth in the API specifications. Mold-on centralizers are able to be applied directly to the casing surface. Its blade length, angle and spacing can be designed to fit specific well applications, especially for the close tolerance annulus.
Float Shoe
A rounded profile float shoe with an integral check valve attached to the bottom of a casing string prevents reverse flow, or U-tubing, of cement slurry from the annulus into the casing or flow of wellbore fluids into the casing string as it is run. The float shoe also guides the casing toward the center of the hole to minimize hitting rock ledges or washouts as the casing is run into the wellbore. By "floating" casing in, hook weight is reduced. With controlled or partial fill-up as the string is run, the casing string can be floated into position, precluding the need for the rig to carry the entire weight of the casing string. The outer portions of the float shoe are made of steel and generally match the casing size and threads, although not necessarily the casing grade. The inside (including the external taper) is usually made of cement or thermoplastic, since this material must be drilled out if the well is to be deepened beyond the casing point.
Guide shoes are a variant of a float shoe without a check valve.
Float Collar
A float collar is installed near the bottom of the casing string. Cement plugs land on it during the primary cementing operation, thus retaining inside the casing a small portion of the cement slurry that may have become contaminated as the top plug scrapes the inside of the casing. It is similar to a float shoe; often both are used for redundancy. The internal check valves may be flapper type or spring-loaded balls.
The check-valve assembly fixed within the float collar prevents flow back of the cement slurry when pumping is stopped. Without a float collar or float shoe, the cement slurry placed in the annulus could U-tube, or reverse flow back into the casing. The greater density of cement slurries than the displacement mud inside the casing causes the U-tube effect.
Stage Collar
Stage Collars provide a means for cement slurry to be displaced higher in the annulus immediately following the primary cement job. A series of differently sized rubber plugs pumped down inside the casing open and then later close the sliding valves.
Cementing Plug
A rubber plug used to separate the cement slurry from other fluids, reducing contamination and maintaining predictable slurry performance. Two types of cementing plug are typically used on a cementing operation. The bottom plug is launched ahead of the cement slurry to minimize contamination by fluids inside the casing prior to cementing. A diaphragm in the plug body ruptures to allow the cement slurry to pass through after the plug reaches the landing collar. The top plug has a solid body that provides positive indication of contact with the landing collar and bottom plug through an increase in pump pressure.
References

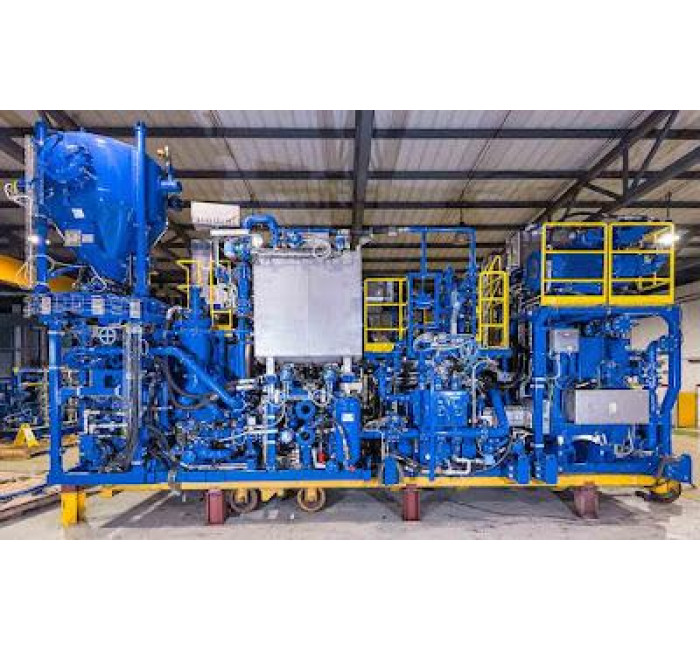

The CPS-730 cement pumping skid is a twin-pump offshore cementing unit that provides cementing and pressure pumping capabilities in deep water environments.
Two General Electric (GE) motors provide a combined horsepower of 1,200 bhp. The motors drive two triplex pumps that deliver a maximum flow rate of 18.5 bbl/min and maximum pressure of 15,000 psi.
The mixing system enables cement slurries to be mixed at conventional rates. Cement mixing processes are fully automated, with auto density control for consistent cement slurry properties and performance. Cement mixing and pressure pumping processes are fully remote controlled, with local operation available as backup.
The CPS-730 skid meets DNV-OS-A101 standards for operation in Zone 2 hazardous areas.
Applications
Cement slurry mixing and pumping on offshore rigs
High-pressure or high-rate pumping or both
High-pressure pumping and testing operations
Advantages
Improved access and maintenance with modular design
Reduced NPT because of complete redundancy with two independent power trains and system redundancy
Increased cement slurry mixing rates
Slurry Air Separator mechanical cement slurry defoamer on mix tub
Consistent cement slurry properties and performance through automatic cement density control
Recirculation and downhole densitometers
Compliance with American Bureau of Shipping (ABS) certified drilling system (CDS) criteria
Det Norske Veritas (DNV)-OS-E101 and DNV 2.7-3 certified
Electric-powered, twin-pump cement unit with combined horsepower of 1,200 bhp
Full data acquisition and control systems (DACS) acquisition system
Fully remote-controlled for all cementing and pressure pumping operations
Direct drive for low-rate pumping capability
Torque control for fine pressure control
Removable spacer between pump and power modules for installation in small spaces
Two triplex pumps with maximum working pressures of 15,000 psi and 6,667 psi, respectively, and total maximum pump rate of 18.5 bbl/min
Two 5×6 and one 4×5 centrifugal pump
Displacement tank agitators
Optional averaging skid with surge tank
Spreader bar and slings for offshore lifting
